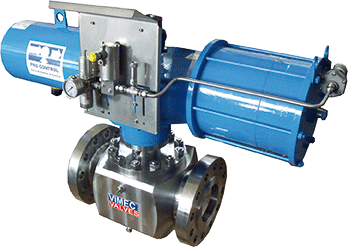

  TOP ENTRY BALL VALVES

top entry valves dubai uae
VIMEC ensures in-line field service and maintenance by removing the valve top cover and allow free access to the cavity of the body.

A series of special maintenance tools allows you to remove the ball and seats. This maintenance requires a very little space around the valve and therefore suitable for areas with space constrain.

The special design allows the replacement of the shaft seal when the valve is in the closed position.

The seal is guaranteed by O-rings or Lip Seals and seals in graphite fire retardant that can be replaced when the valve is under pressure.

Size Range: 1” to 36”

Bore : Full & Reduced

Pressure Class : 150 Lbs to 2500 Lbs

Design Standards: Valves are manufactured in full compliance with product specifications and conforms to API 6D, ANSI, ASME, British Standards etc

.........................................................................................................................................................................................................................................

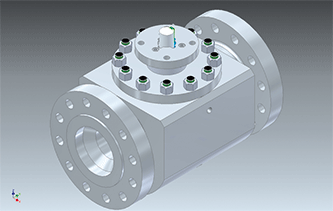

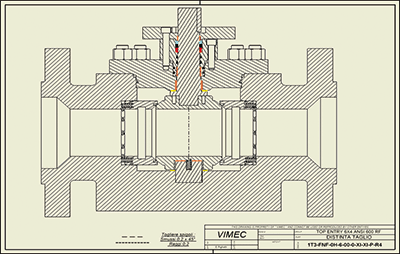

top entry valves1top entry valves 2

.........................................................................................................................................................................................................................................
