  FLOATING & TRUNNION - BALL VALVES

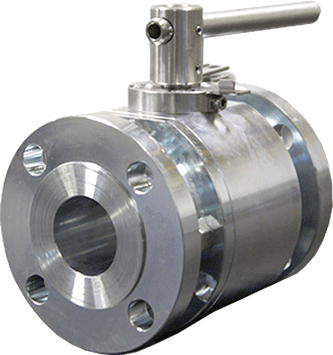

FLOATING BALL VALVES dubai uae
VIMEC offers a wide range of soft & metal seated Ball Valves in 2 pc, 3 pc body construction (Floating & trunnion design).

Vimec Ball Valves provide positive shut-off minimizing the pressure drop.

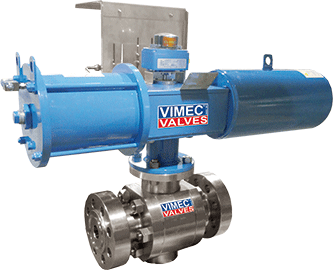

Trunnion-mounted, double block-and-bleed valves conform to API 6D standard.

Other design features : Anti-Blow out stem, Automatic Cavity Relief Mechanism, Fire Safe etc

Floating & Trunnion (1 Piece / 2 Piece / 3 Piece Design)

Size : ½” to 36”

Rating : ANSI 150#, 300#, 600#, 800#, 900#, 1500#, 2500#

Ends : Screwed, Socket Weld, Flanged RF, RTJ, BW

Bore : Full & Reduced

Carbon Steel, Stainless Steel, Low Temp, Alloy & Duplex Steel. Soft Seated & Metal Seated

Fire Safe, NACE MR-01-75

Design Standards: Valves are manufactured in full compliance with product
specifications and conforms to API 6D, ANSI, ASME, British Standards etc

.........................................................................................................................................................................................................................................
